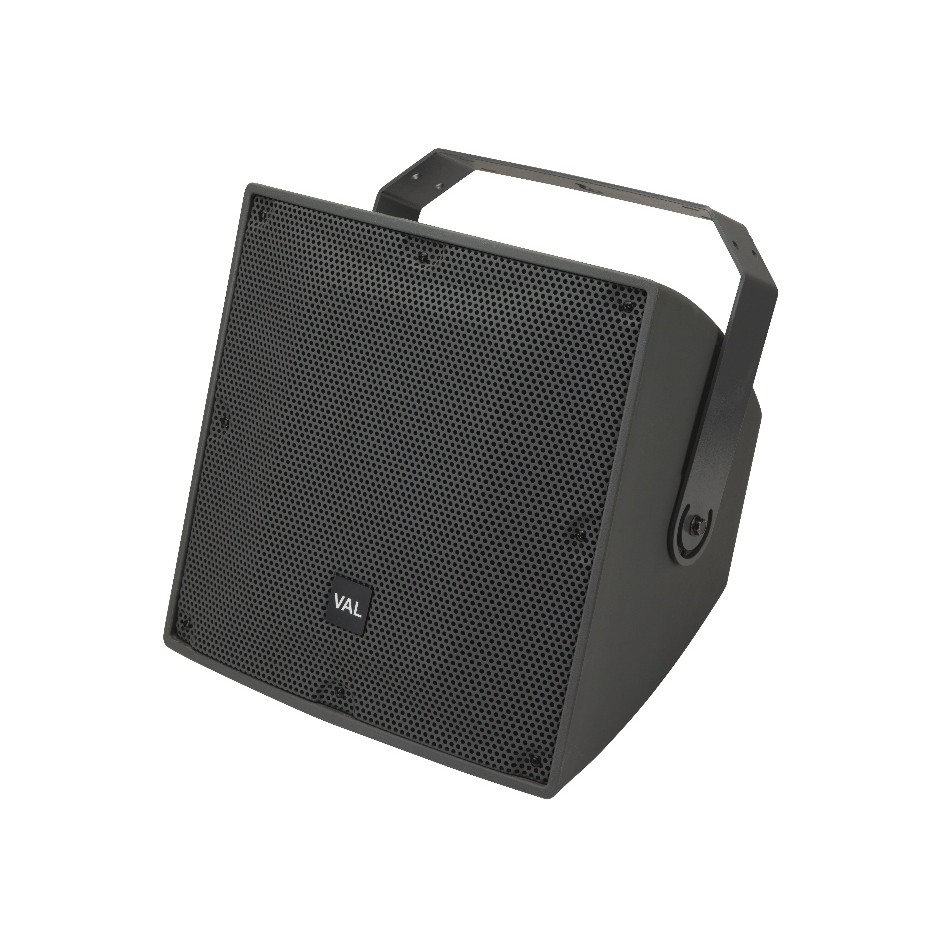

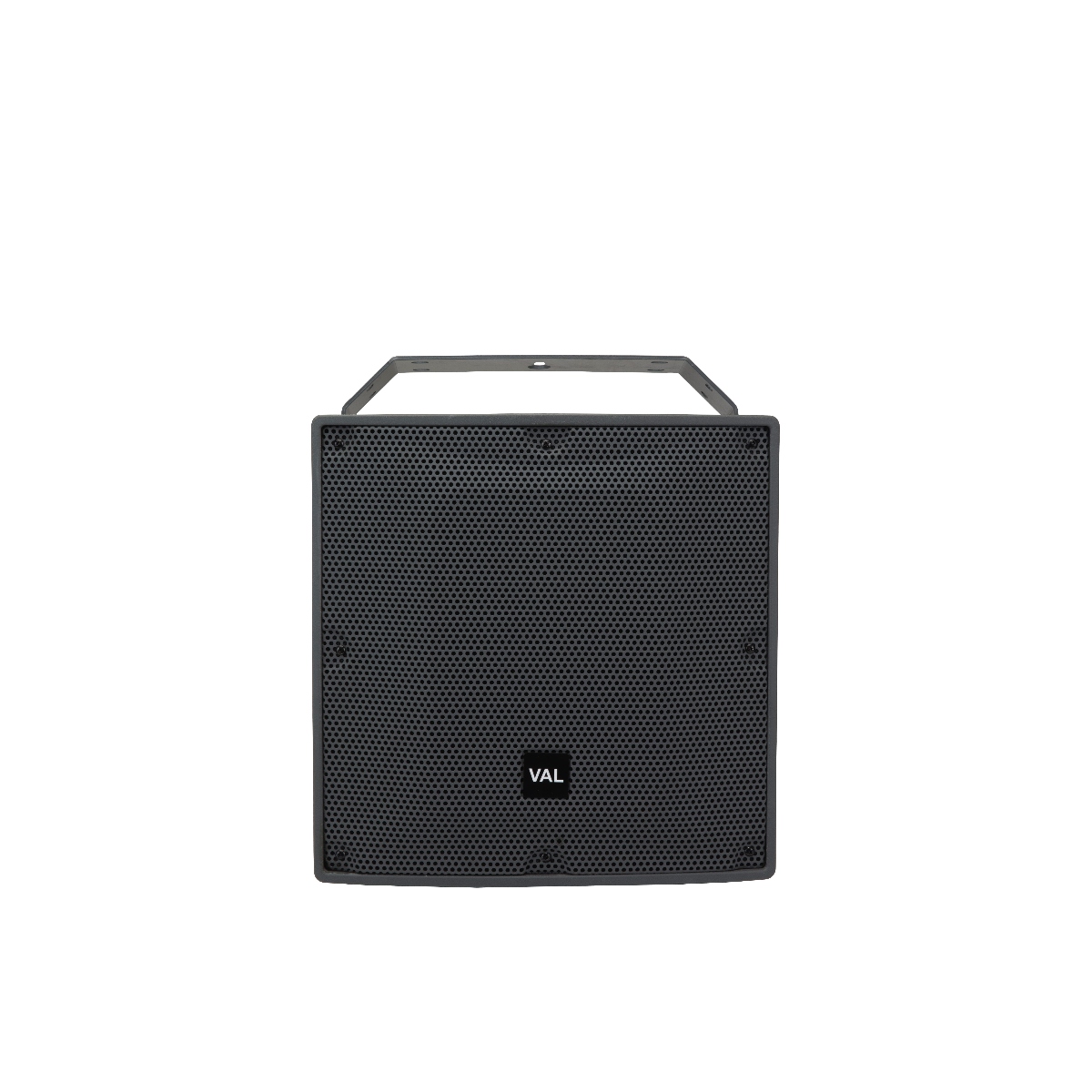

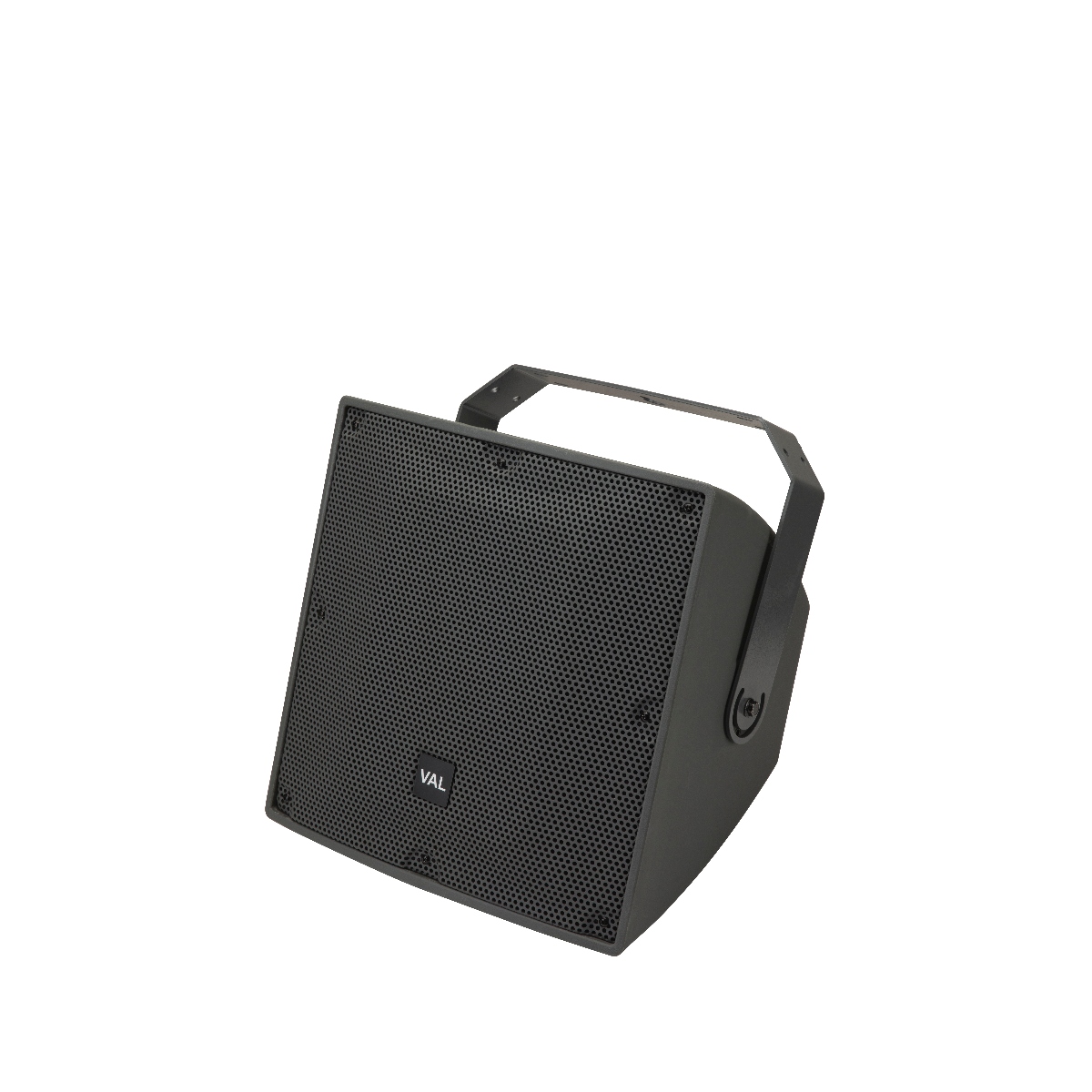

The VAL Audio WP12CX is a premium-grade 12” two-way coaxial loudspeaker engineered for superior sound performance and durability in all-weather outdoor applications. Its coaxial point-source design with a 1” horn-loaded high-frequency driver ensures coherent dispersion, high output, and excellent clarity, making it ideal for both background and foreground music reinforcement in open spaces.
Housed in a robust injection-molded polymer enclosure, the WP12CX is built to endure the toughest environmental conditions. The cabinet material offers high resistance to UV degradation, while a powder-coated aluminum grille with five-layer protection shields the internal components from water and dust intrusion. Designed to meet IP56 standards, this loudspeaker delivers peace of mind in all outdoor – coastal, humid, or dusty environments.

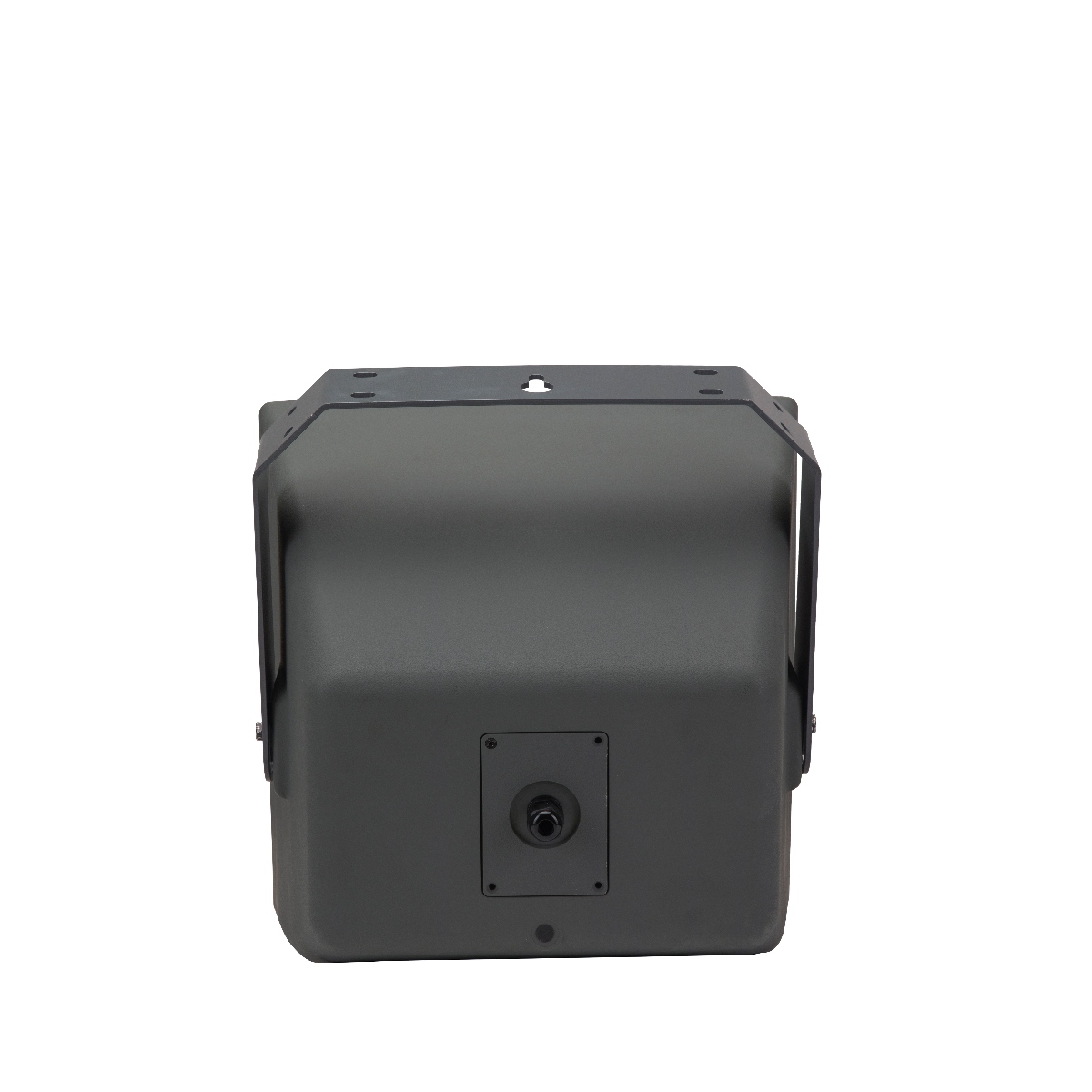

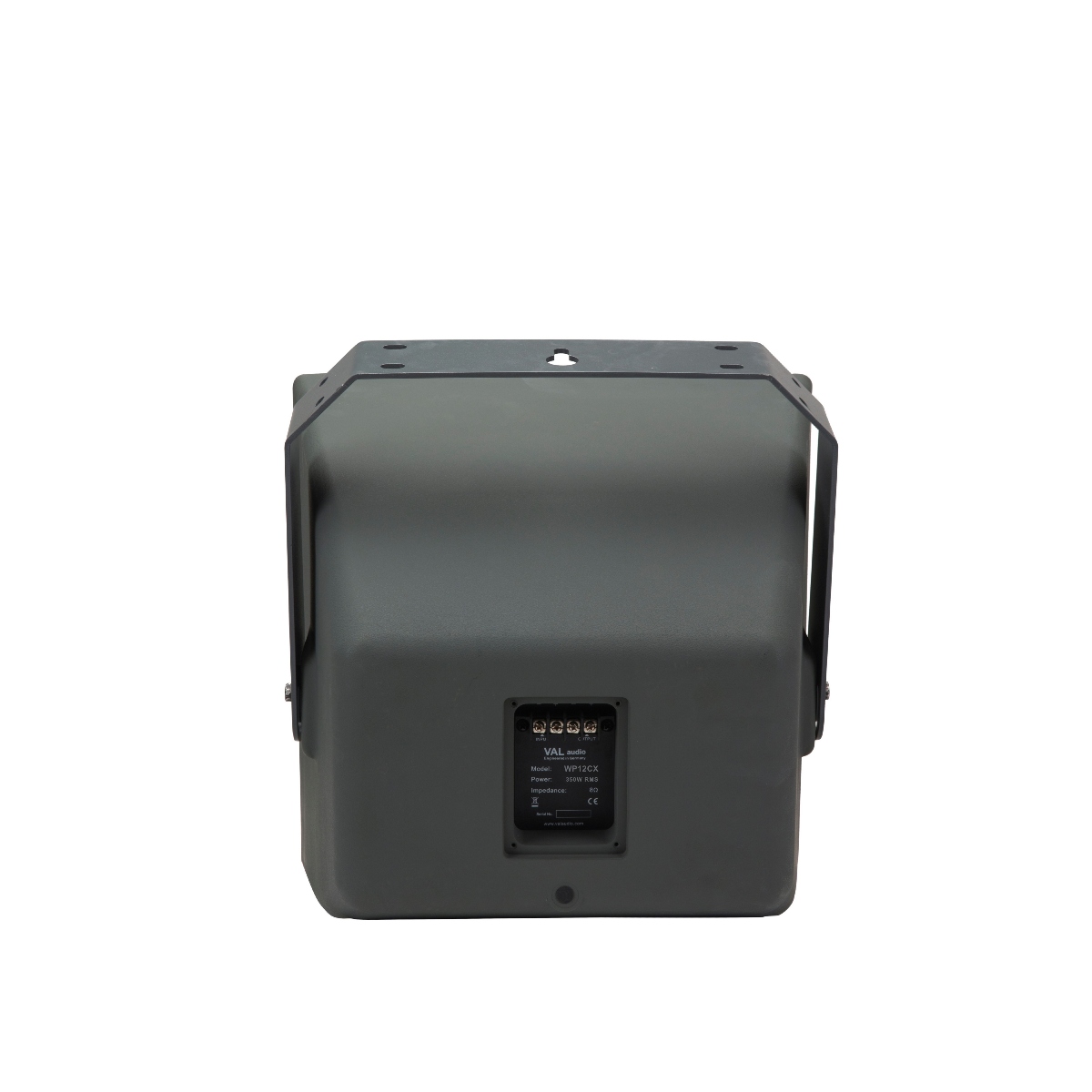

All external hardware components are selected for long-term reliability, including stainless steel screws, brass-embedded mounting points, and waterproof silicone covers for the connectors. The sealed back panel and weatherproof input/output terminals further reinforce its environmental protection, allowing for uninterrupted performance in demanding outdoor conditions.
Supplied with a versatile U-bracket made of 316 stainless steel, the WP12CX offers flexible mounting options, making it easy to install in a variety of architectural and landscape settings where premium audio and weather resistance are non-negotiable.
- 12” two-way coaxial loudspeaker designed for weather-resistant performance
- Robust injection-molded polymer cabinet for reliable operation in all-weather conditions
- Coaxial point-source design with horn-loaded configuration for delivering high sound pressure levels (SPL) 129dB peak
- Powder-coated aluminum grille with five-layer protection, ensuring superior water ingress prevention
- Designed to meet stringent IP56 weatherproofing standards for outdoor durability
- UV-resistant housing material for enhanced protection against prolonged sun exposure
- Corrosion-resistant components, including brass-embedded nuts, waterproof silicone covers, and stainless steel screws
- Sealed, dustproof, and waterproof back panel covers and connectors for maximum environmental protection
- Supplied with a versatile U-bracket made of 316 stainless steel for secure and flexible mounting options
Ideal for a variety of outdoor environments where high-quality sound and rugged weather resistance are critical.
- Restaurants, bars, and beachside clubs
- Outdoor lounges and scenic venues
- Amusement and theme parks
- Near-field reinforcement in open-air plazas
- Outdoor hospitality zones and terraces
- Public paging and background music in exposed areas
| Power Handling | 350W RMS / 700W Program / 1400W Peak |
| Nominal Impedance | 8 ohms |
| Frequency Response | 50Hz – 20kHz (-10dB) |
| Average Sensitivity | 98dB (1W/1M) |
| Maximum SPL | 123dB continuous / 126dB program / 129dB peak |
| Low Frequency Driver | 1 × 12″ ferrite woofer (3″ voice coil) |
| High Frequency Driver | 1 × 1″ driver (1.7″ voice coil), coaxially mounted |
| Crossover Frequency | 2.2kHz passive |
| Dispersion (-6dB) | 70° × 50° |
| Input Connectors | Covered barrier strip terminals |
| Size (WxHxD) | 407mm × 411mm × 448mm |
| Net Weight | 18 Kg |
| Gross Weight | 20 Kg |
