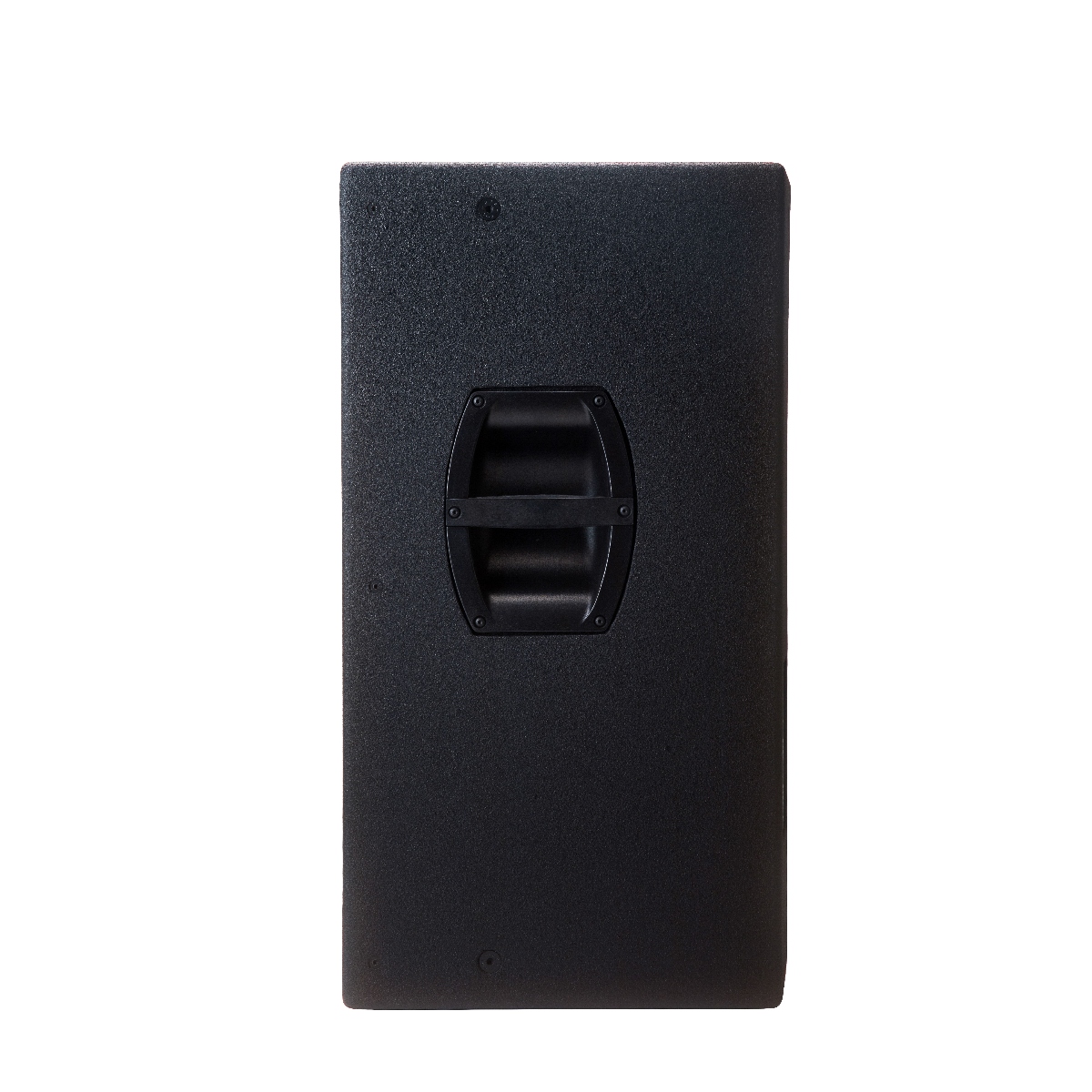

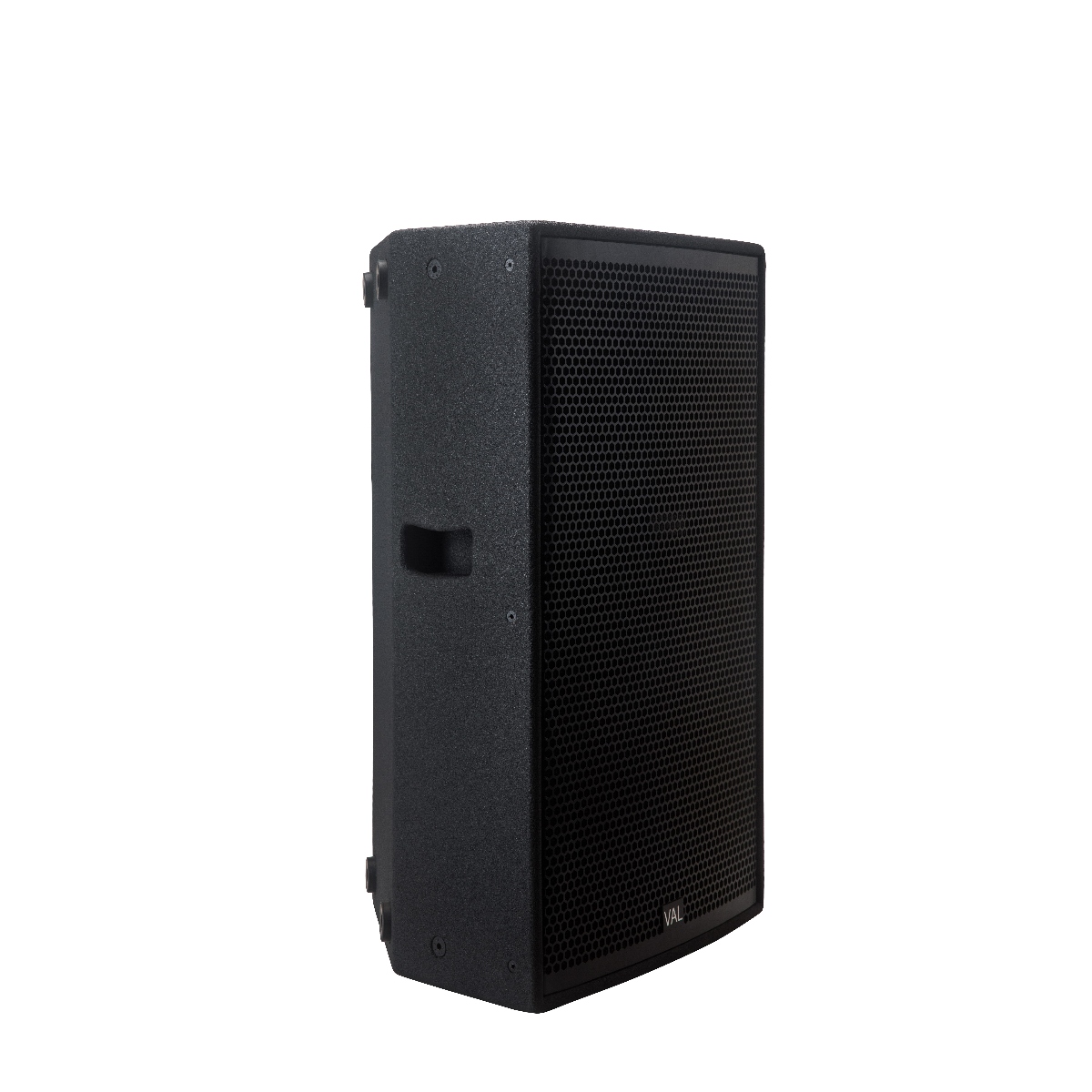

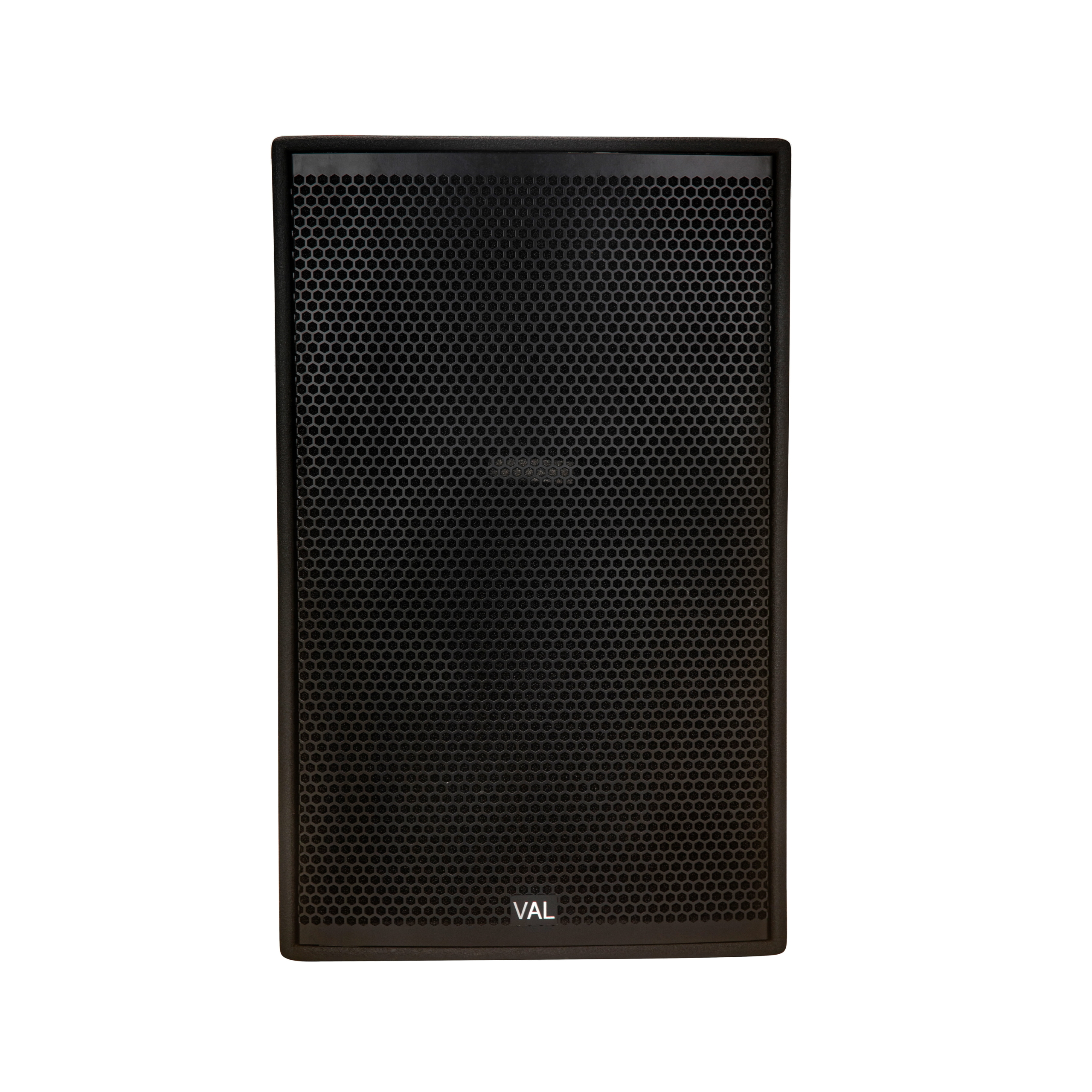

The ZX15HP is a high-output, ultra high-performance 15” two-way full-range loudspeaker engineered for demanding professional sound reinforcement applications. Designed to deliver exceptional clarity, deep low-frequency extension, and outstanding projection, the ZX15HP combines premium European custom transducers with precision acoustic engineering to achieve class-leading output and tonal accuracy.
With 800W RMS power handling and peak SPL capability of 134 dB, the ZX15HP provides powerful, controlled performance for FOH systems, stage monitoring, and installation environments. Its rotatable constant-directivity horn ensures flexible coverage control, while the rugged birch plywood enclosure and touring-grade finish guarantee long-term reliability in mobile and fixed installations.
The ZX15HP is built for professionals who require uncompromised performance, durability, and sonic excellence.
- 800W RMS / 3200W Peak Power Handling
- 134 dB Peak SPL – Class Leading Output
- Premium Custom European LF & HF Transducers
- 42 Hz – 21 kHz Extended Full-Range Response
- 90° × 40° Rotatable Constant Directivity Horn
- 1.4” Exit Compression Driver with 3” Titanium Diaphragm
- Multipurpose FOH & Stage Monitor Enclosure
- Birch Plywood Cabinet Construction
- Touring-Grade Scratch-Resistant Textured Finish
- 12 × M8 Rigging Points with Integrated Pole Mount
The ZX15HP is engineered for a wide range of professional and high-performance audio applications. Its high output capability and controlled dispersion make it equally suitable for portable rental use and fixed installations.
- Main PA system for seminar halls, training rooms, classrooms, AV rooms, and gyms
- Clubs, lounges, restaurants, and hospitality venues
- Indoor and outdoor DJ systems and live music performances
- Stage monitoring and personal monitoring applications
- Auditorium fill systems (under-balcony, over-balcony, and front-fill)
- Rental and AV presentation systems
- Premium large-format home theatre systems
| Power Handling | 800W RMS / 1600W Program / 3200W Peak |
| Nominal Impedance | 8 ohms |
| Frequency Response (-6dB) | 42Hz – 21KHz |
| Average Sensitivity | 99dB/W/m |
| Calculated Max SPL / 1m | 128dB Continuous / 131dB Program / 134dB Peak |
| Nominal Directivity | 90° (H) x 40° (V), CD Horn |
| Recommended Amplifier | 800W – 1600W |
| Low Frequency Driver | 1 × 15’’ Custom ferrite magnet |
| LF Chassis | Die Cast Aluminum |
| LF Voice Coil Diameter | 4’’ / 101.6mm |
| High Frequency Driver | 1.4’’ Exit Custom Compression driver ferrite magnet |
| HF Voice Coil Diameter | 3’’ / 75mm |
| HF Diaphragm | Titanium Diaphragm |
| Crossover | Internal passive crossover, 1.4KHz crossover point |
| Flying Hardware | 12 × M10 inserts |

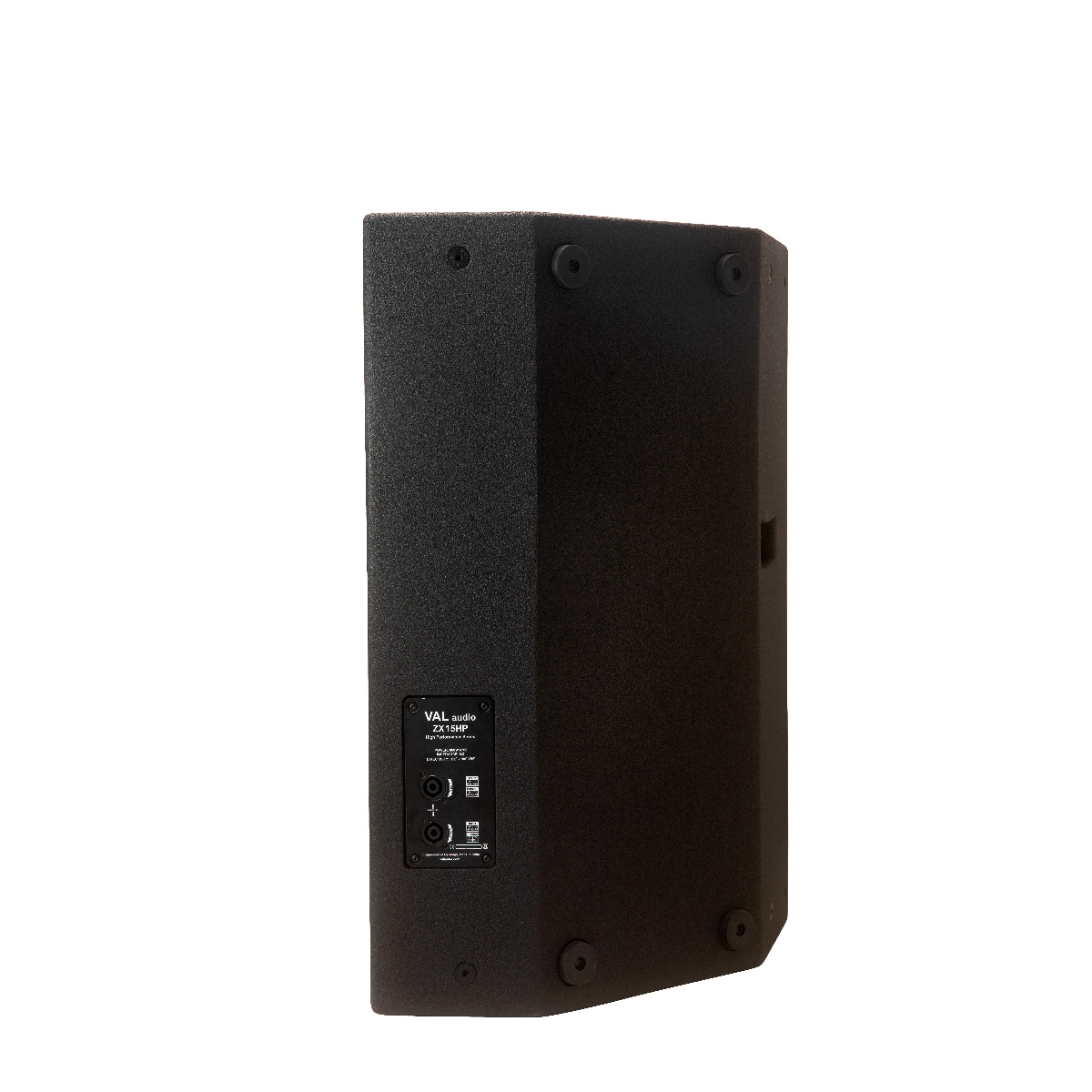

| Connectors | 2 × NL4 Speakon |

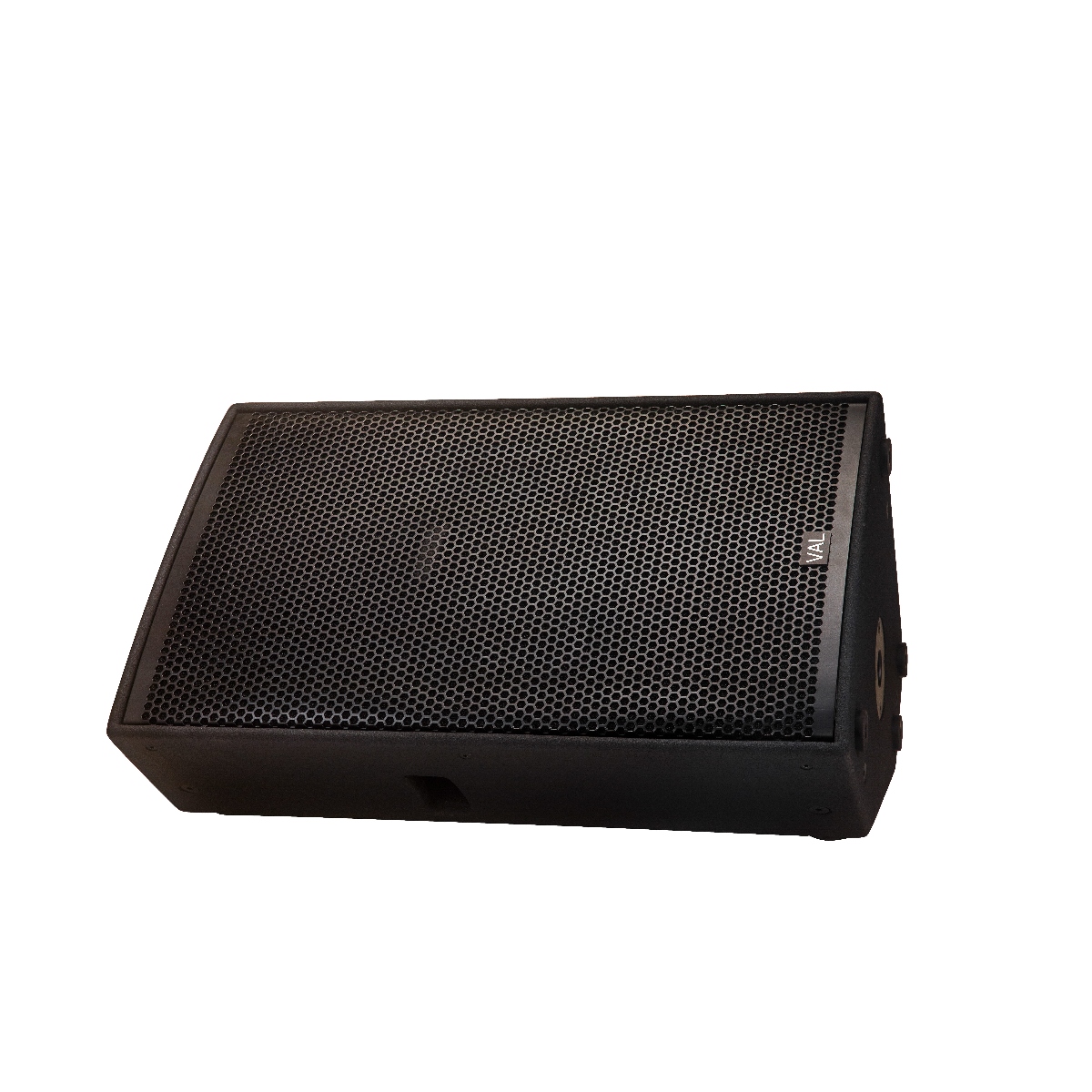

| Floor Monitor Wedge | Yes |
| Pole Mount Adapter | Yes |
| Cabinet | 18mm Birch Plywood |
| Finish | Touring grade textured waterborne black, scratch-resistant coating |
| Size (WxHxD) | 460 × 740 × 385 mm |
| Weight | 35.10 Kg |
