OVERVIEW

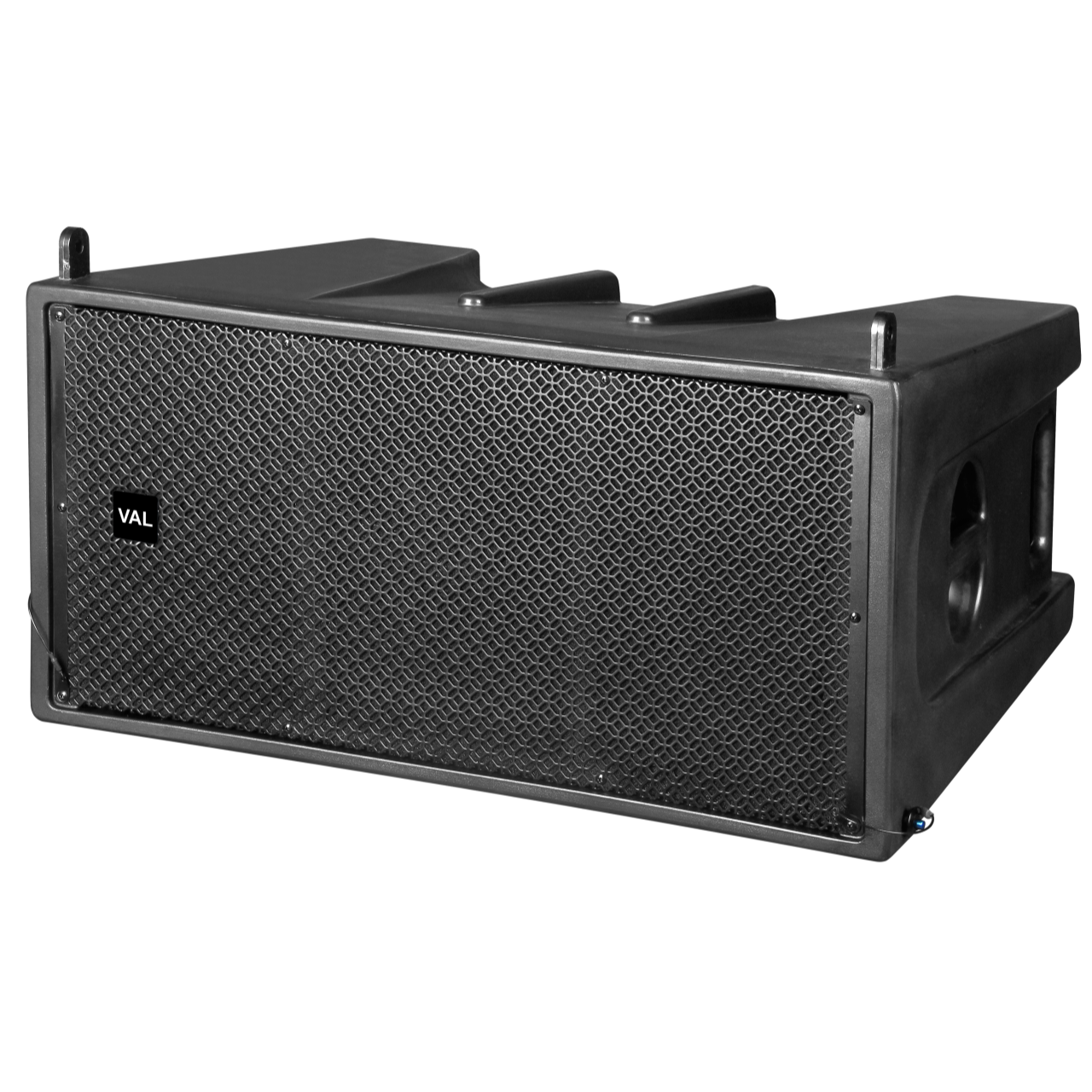

The VAL audio WP312 is a high performance bi-amplified, three-way, all weather line array loudspeaker for use in open to sky outdoor environments. It is designed to meet IP66 standards and uses a special polymer composite injection molded cabinet that is waterproof, dustproof and anti-uv aging. Further it features a special five-layer grille designed of different materials to prevent water and dust ingress. All hanging parts and connecting parts are made of treated stainless steel or aluminum. The WP312 features 2×12” high efficiency, low distortion mid-bass drivers and two coaxial MF/HF neodymium drivers mounted on a special waveguide and horn for accurate coverage. A three-point hanging system ensures complete safety and accuracy.
KEY FEATURES
- Dual 12” bi-amplified, three-way weatherized line array loudspeaker
- Polymer composite injection molded cabinet for all-weather use
- Designed to meet IP66 standards
- Coaxial MF/HF neodymium drivers for maximum efficiency and high fidelity
- Powder coated Aluminum grille with five layer protection to prevent water & dust ingress
- Designed to meet IP66 standards
- Three-point hanging system to ensure complete safety and accuracy
APLICATIONS
- Outdoor applications requiring long throw and high SPL requirement
TECHNICAL DATA
Description | 3 way, bi-amplified line array |
Power Handling | LF: 800W RMS / 3200W Peak, MF+HF: 300RMS/1200W Peak |
Nominal Impedance | LF: 8 ohms, MF+HF: 16 ohms |
Frequency Response (-10dB) | LF: 60Hz – 850Hz, MF+HF: 600Hz – 19KHz |
Average Sensitivity (1W/1m) | LF: 101dB, MF+HF: 110dB |
Maximum SPL | LF: 130dB Continuous / 133dB Program / 136dB Peak, MF+HF: 134dB Continuous / 137dB Program / 140dB Peak |
LF driver | 2 x 12’’ (3’’ voice coil) custom ferrite woofer |
MF+HF driver | 2 x 1.4’’ Exit (3.5’’ voice coil MF / 1.7” voice coil HF) Coaxial neodymium driver |
Crossover Frequency | 600Hz |
Dispersion (-6db) | Horizontal: 90°, Vertical coverage: depending on array length |
Input Connectors | 2 x Speakon NL4 |
Size (WxHxD) | 756mm x 374mm x 550mm |
Net Weight | 41.5 Kg |
Gross Weight | 50 Kg |
