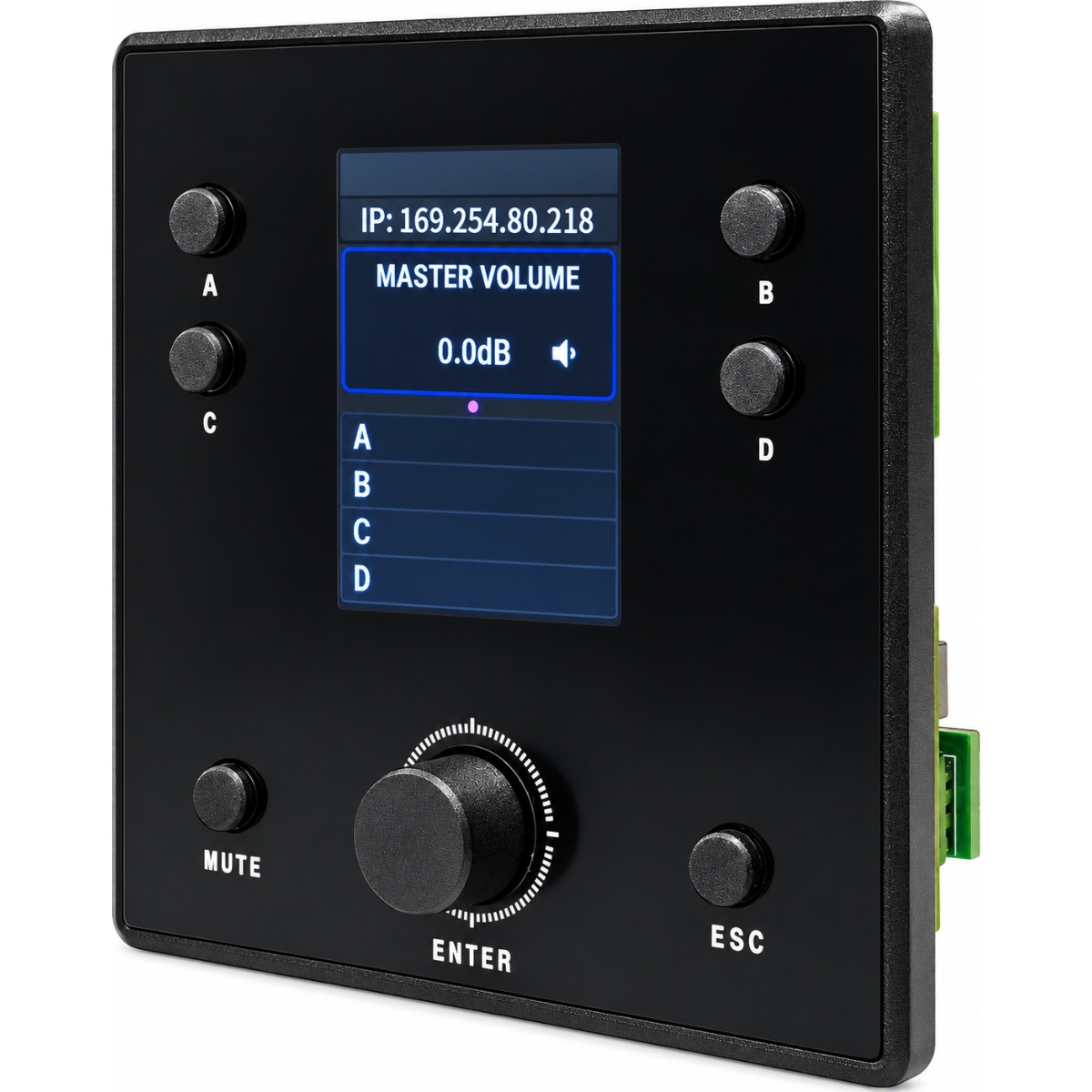

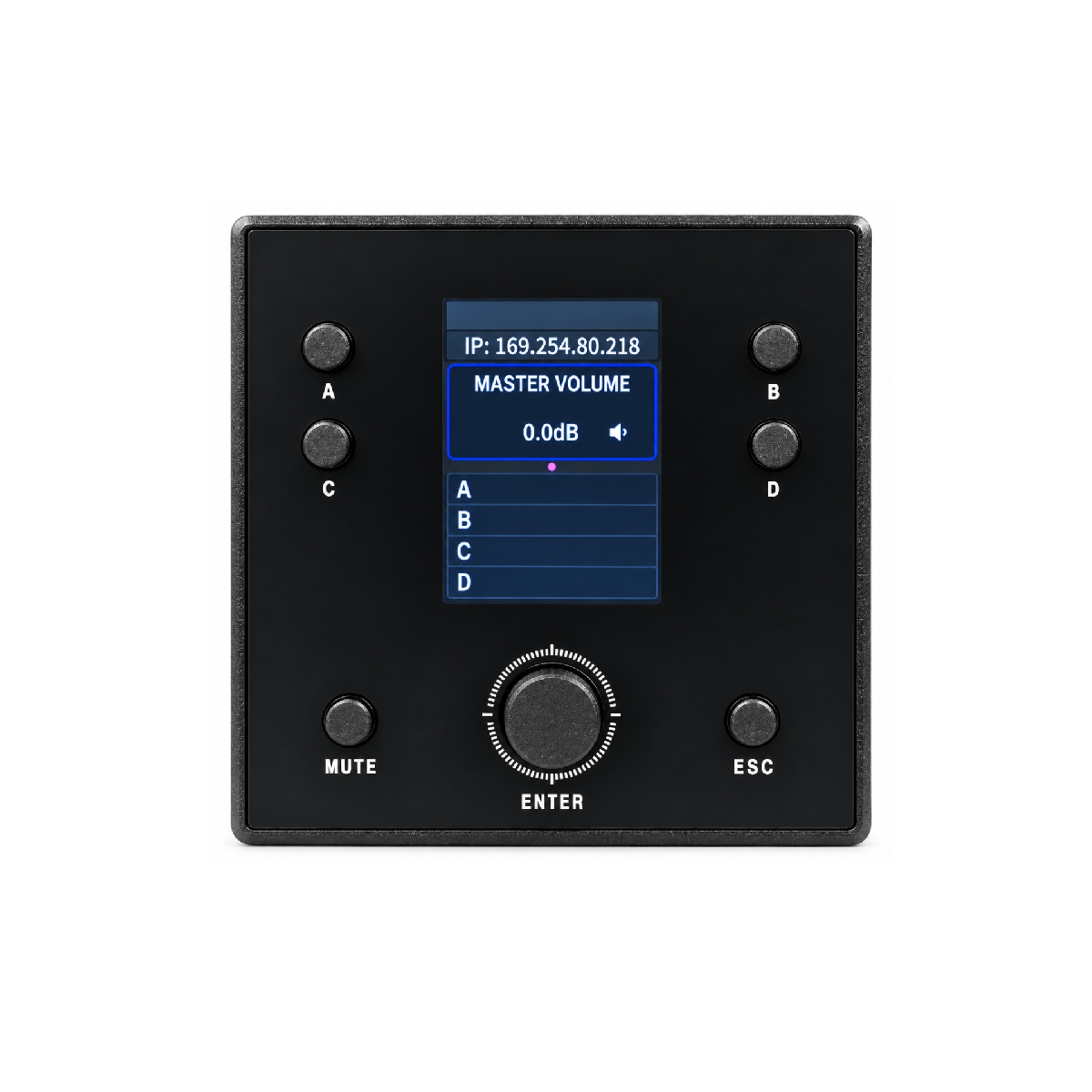

NEXUS NODE 1 is a compact network wall control interface for compatible DSP audio systems. It combines PoE connectivity, a local colour TFT display and intuitive physical controls in an 86-type wall-panel format.
Local control, designed for installed audio. Users can select configured channels or zones, adjust volume, mute audio and access assigned functions directly from the panel.

Conference Rooms: Local volume and source control

Multi-Functional Halls: Distributed zone control

Hotels: Guest-area audio control

Shopping Malls: Convenient local operation

Sports Stadiums: Zone and source management

• 86-Type Wall Mount: Designed for installation in a standard 86 wall box
• PoE Powered: PoE operation with external 12 V / 1 A DC adapter support
• 2-Inch Color TFT: Displays IP address, host/device information, volume, channel and zone status
• Rotary Encoder: ENTER / volume encoder provides intuitive local navigation and level control
• 4 Configurable Keys: Assign volume, mute, scene/preset recall, TCP/UDP commands, matrix routing and camera-tracking commands
• Network Control: 1 × RJ45, 10/100/1000 Mbps network connection with TCP/IP and UDP control
• Multi-Panel Control: Up to 8 panels can control one DSP host simultaneously in real time
