When it comes to selecting an amplifier that delivers outstanding power, exceptional warmth, and unparalleled versatility, the VAL Audio X Series is your ultimate solution. Engineered for both touring and fixed installations, the X4.12 exemplifies the legendary performance and reliability of the X Series, now reimagined in a sleek and modern 2U chassis.
The X4.12 is a powerhouse four-channel Class H amplifier, featuring a robust, high-current Toroidal power supply. With an impressive output of 4 x 800W at 8Ω and 4 x 1250W at 4Ω, this amplifier is designed to meet the demands of even the most rigorous applications. Its flexible configuration allows it to operate as a 4/3/2-channel amplifier, adapting effortlessly to your specific needs. Its high damping factor of ≥800 ensures precise control over loudspeakers, delivering tight, accurate bass and superior sound clarity.
Equipped with an advanced cooling system powered by high-speed, temperature-controlled fans, the X4.12 ensures optimal performance while maintaining cool operation under any conditions. For seamless connectivity, the amplifier includes high-quality XLR inputs with a link feature, along with Speakon and binding post outputs for maximum flexibility.
When you require a no-compromise amplifier capable of running continuously while delivering class-leading performance and sound quality, look no further than the VAL Audio X Series – where innovation meets reliability.
- Live Performances & Touring: Provides powerful, reliable sound for concerts, stage performances, and events.
- Houses of Worship: Delivers clear and consistent audio for sermons, music, and large congregations.
- Theaters & Auditoriums: Ensures high-fidelity sound for dramatic performances, presentations, and speeches.
- Nightclubs & Entertainment Venues: Offers robust audio output for vibrant, dynamic soundscapes.
- Corporate Events & Conferencing: Facilitates high-quality audio for presentations, meetings, and conferences.
- Fixed Installations: Ideal for schools, lecture halls, stadiums, and other permanent setups requiring professional-grade audio amplification.
- Unique 4ch Power amplifier in a modern 2U compact design
- For both touring and fixed Installations
- Immense flexibility usable as a 4/3/2ch power amplifier
- Highly efficient Class H Technology
- Warm and Sweet sounding amplifier
- Robust and strong Toroidal transformer
- High damping factor ≥800
- Selectable input sensitivity – 0.775V/1.0V/1.44V
- Advanced cooling system with high speed temperature controlled fans

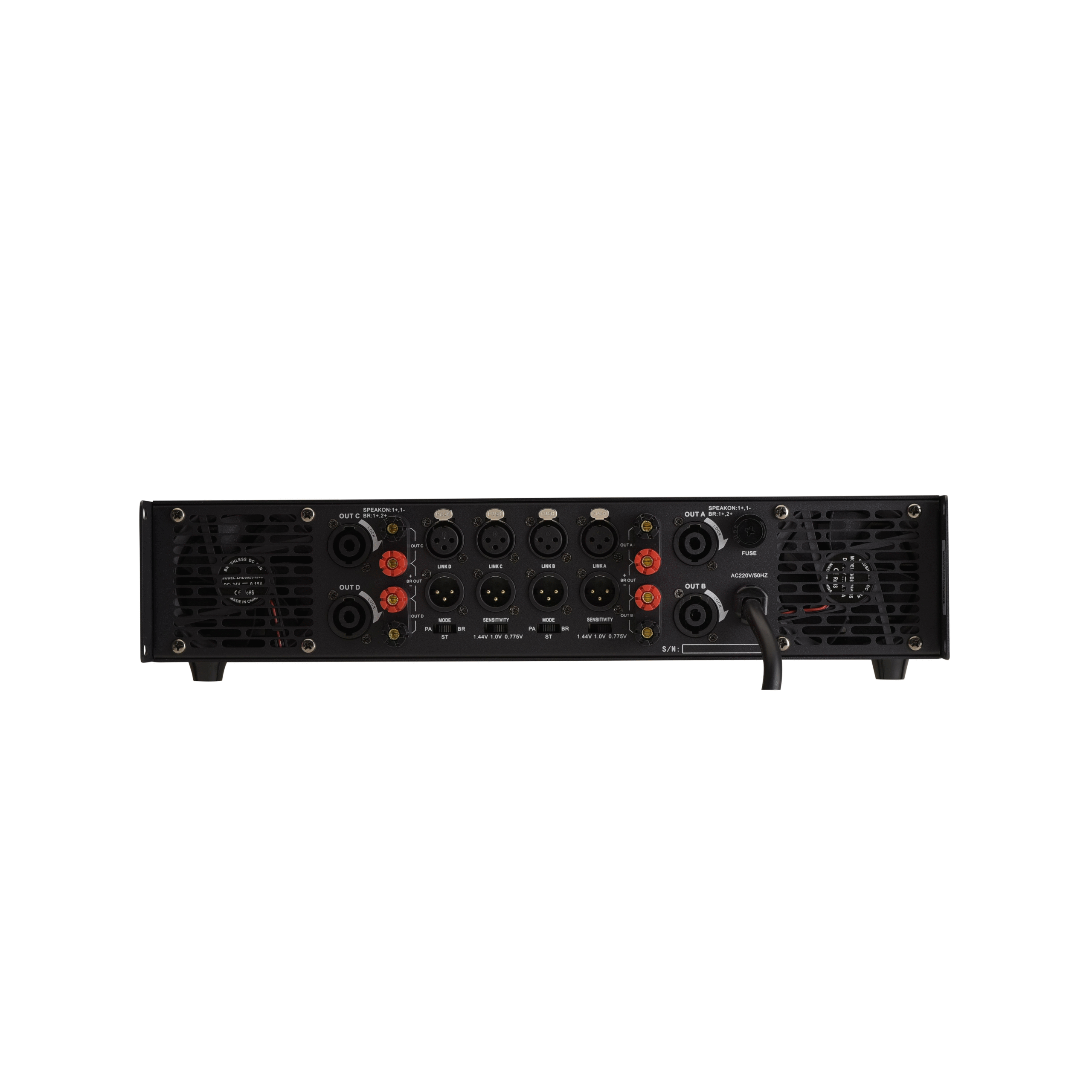

- Professional XLR inputs with link connectors, speakon & binding post output connectors
| MODEL | X4.12 |
| Power (*EIA Standard) | |
| 8Ω Output | 4 x 800W |
| 4Ω Output | 4 x 1250W |
| 2Ω Output | 4 x 1600W |
| Bridged 8Ω Output | 2 x 2500W |
| Output Circuit | Class H |
| Frequency Response (±1dB) | 10Hz – 30kHz |
| Input Sensitivity | 0.775V / 1.0V / 1.44V |
| Input Impedance | Balanced 20KΩ Unbalanced 10KΩ |
| Crosstalk (rated power 8Ω 1kHz) | ≥65dB |
| Signal to Noise Ratio | ≥101dB |
| Damping Factor | ≥800 |
| Total Harmonic Distortion (8Ω 1/10 Po) | <0.1% |
| Rack space | 2U |
| Cooling System | 4 nos temperature controlled high speed fans |
| Protection | Comprehensive protection circuitry – Soft-Start, Short-Circuit, Over and Under-Voltage, Over-Current, Over-Load, DC Output, Temperature |
| Net Weight (Kg) | 26.75 |
| Size (mm) | 483 x 490 x 98 |
