OVERVIEW
KEY FEATURES
TECHNICAL DATA
DOWNLOADS
OVERVIEW

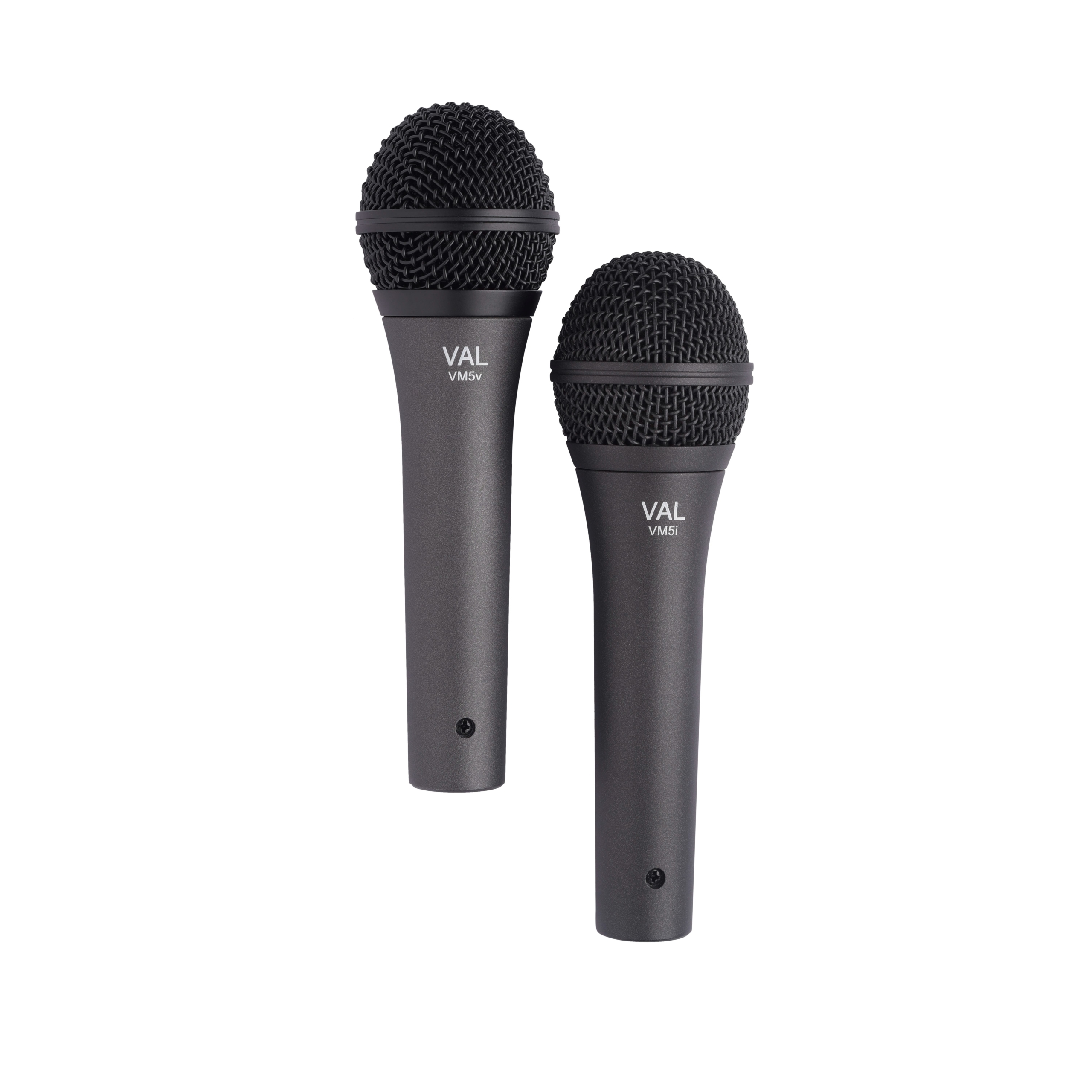

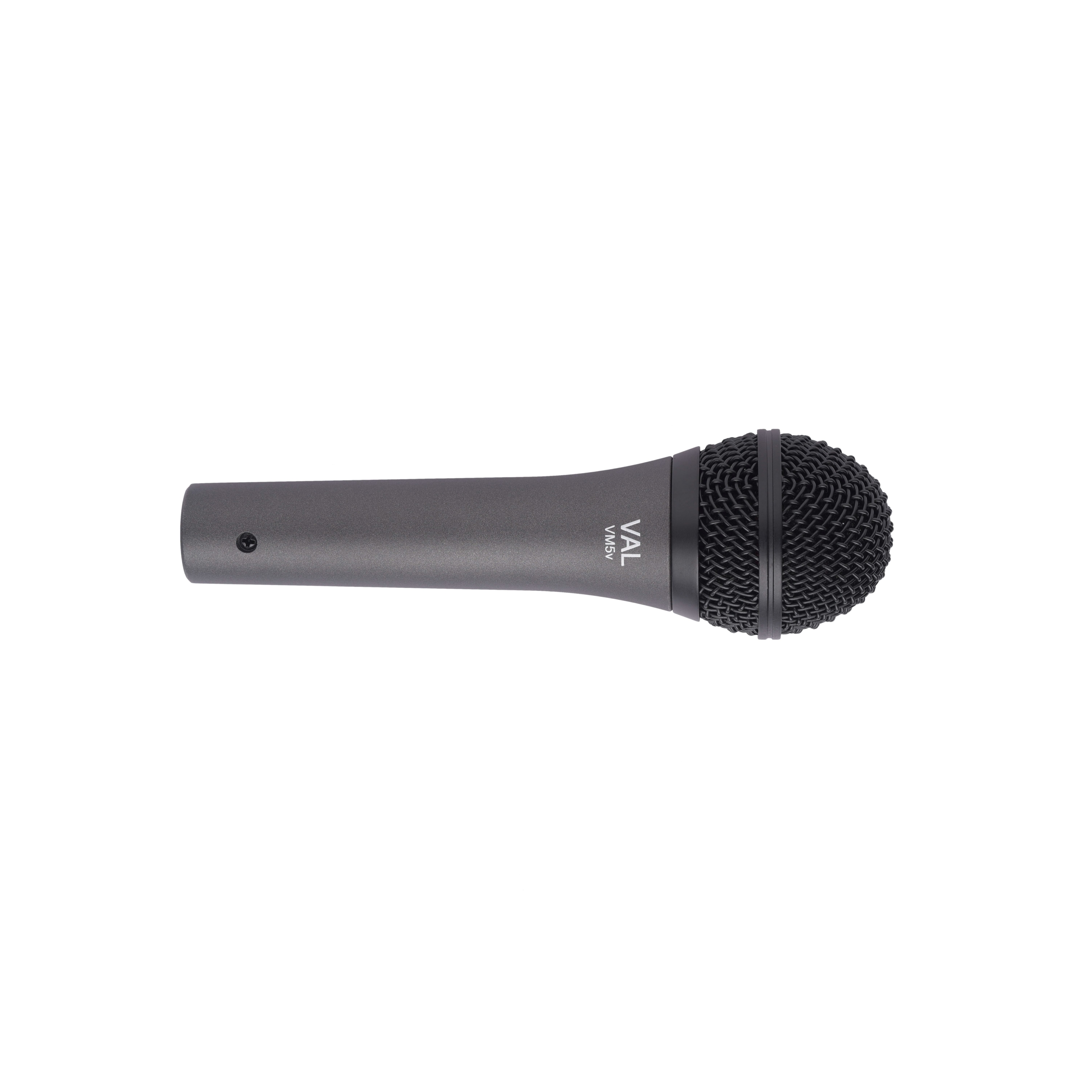

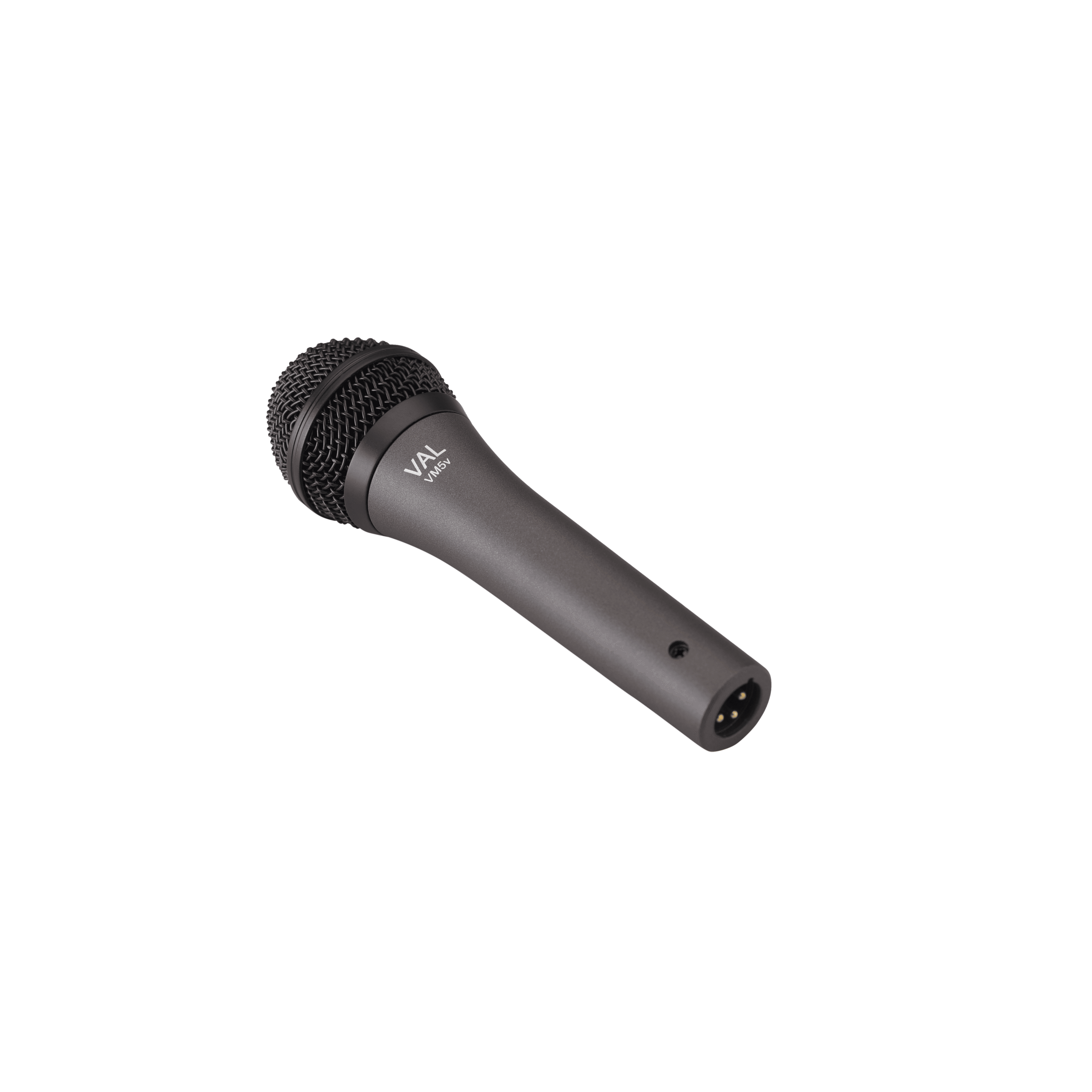

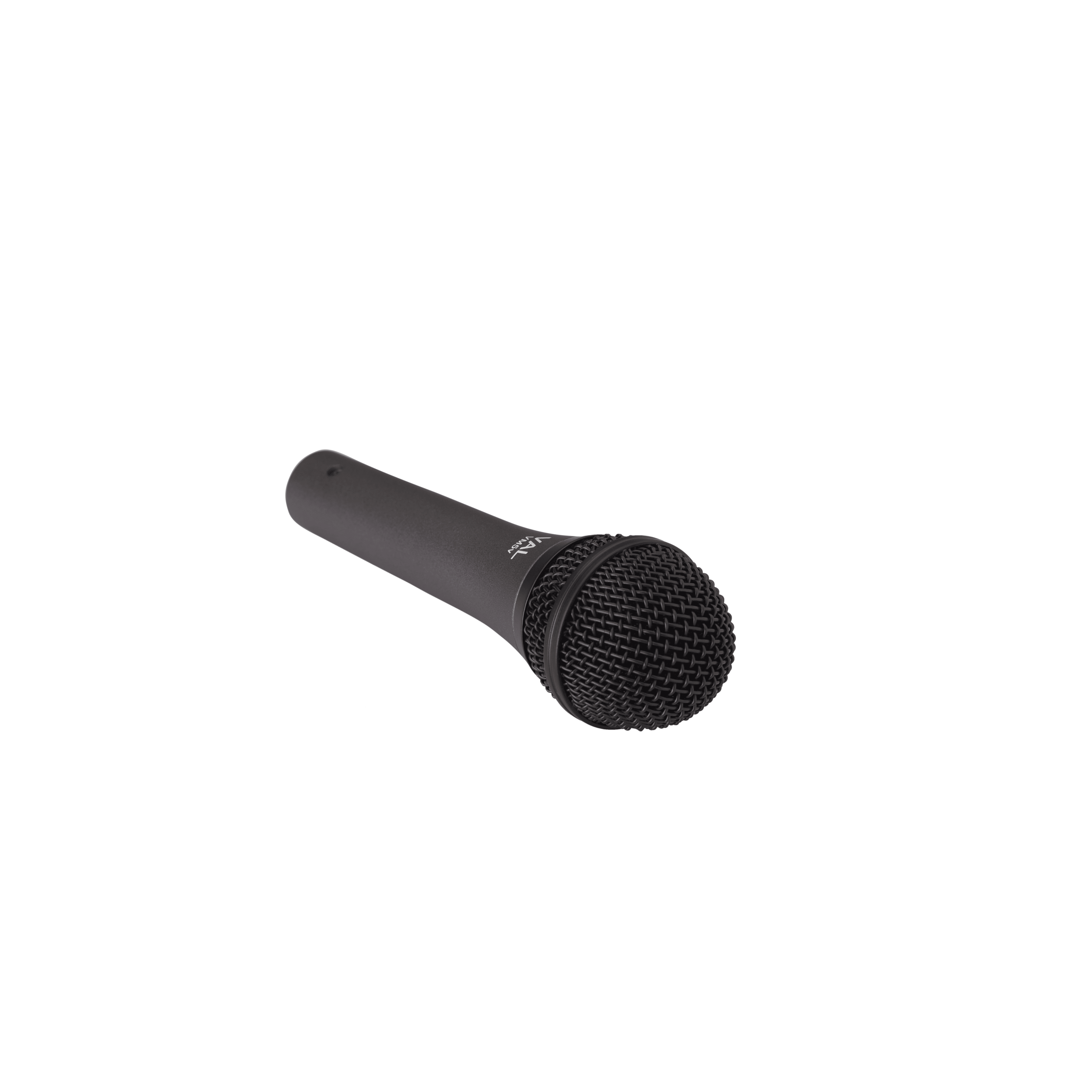

A perfect performance microphone, the high-output,natural sounding VAL audio VM5v / VM5i is designed for use as a lead, backup, or choral vocal/ instrument microphone. It features a dynamic microphone capsule protected by a metal grille for maximum output and fast transient response. The cardioid shaped polar pattern makes it your most versatile companion giving you freedom on stage while ensuring minimum feedback. Further it features a silent on/off switch operation, a zinc die-cast metal body and a corrosion-resistant XLRM-type connector giving the microphones a rugged yet premium feel. Whatever your wired microphone needs the VM series from VAL will always be your perfect companion.
KEY FEATURES
- High-output design for vocals /instrument that cut through the mix
- Cardioid Dynamic Microphone Element
- Rugged all metal Zinc die-cast construction with metal grille for capsule protection
- Dynamic microphone capsule for improved output and transient response
- Reduced handling noise thanks to anti-shock engineering
- Silent on-off operation switch
- Corrosion resistant XLRM-type connector
TECHNICAL DATA
MODEL | VM5v |
Element | Dynamic Microphone Capsule |
Polar Pattern | Cardioid |
Frequency Response | 55 – 15000Hz |
Impedance | 600 ohms |
Sensitivity (at 1,000 Hz Open Circuit Voltage) | –54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL |
Body | Dark Grey color, All metal Zinc die-cast, matte finished, spherical steel mesh grille – black color |
Connector | Three – Pin Professional Audio Male XLR |
Switch | ON/OFF |
Dimension | 6.9’’ (175mm) Long, 2.2’’ (52mm) Head Diameter |
Weight | 200gm |
DOWNLOADS
